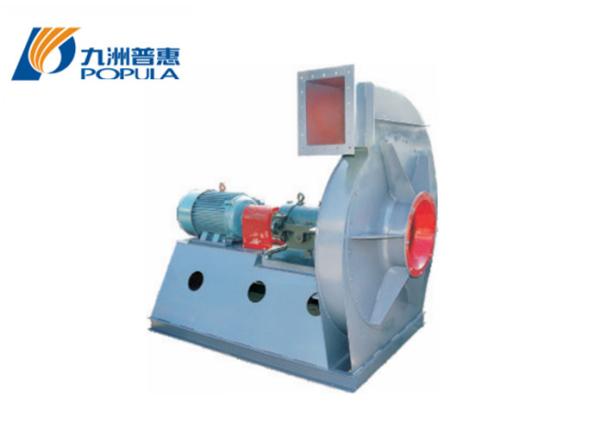

9-19 type high pressure air blower centrifugal
The series are use for coercive ventilation in industries such as
ancient furnace, glassm electroplanting , ceramics, etc, and are
widely used for material transportation in processing industries
like food, feed and slad. The transporting medium is air or tother
non-spontaneous-combustion and non-explosive-combustion air with no
harm to human. The air transferred shall not contain any adhesive
material, dust and grain and the concentration shall not exceed
150mg/m3, with the temperature no high than 80℃.
Specifications
| Model No. | Vol./Freq. (V/Hz) | Power (kW) | Rotation (RPM) | Air Volume (m3/h) | Total Pressure(Pa) |
| 9-19-3.5A | 380/49 | 1.5 | 2800 | 552-847 | 2745-2744 |
| 9-19-4A | 380/50 | 2.2 | 2800 | 824-1264 | 3584-3597 |
| 380/50 | 3 | 2900 | 1410-1704 | 3507-3253 |
| 9-19-4.5A | 380/50 | 4 | 2900 | 1174-2062 | 4603-4447 |
| 380/50 | 5.5 | 2900 | 2281-2504 | 4297-4112 |
| 9-19-5A | 380/50 | 7.5 | 2900 | 1610-2844 | 5697-5517 |
| 380/50 | 11 | 2930 | 3166-3488 | 5323-5080 |
| 9-19-5.6A | 380/50 | 11 | 2930 | 2622-3619 | 7182-7109 |
| 380/50 | 18.5 | 2930 | 3996-4901 | 6954-6400 |
| 9-19-6.3A | 380/50 | 18.5 | 2930 | 3220-5153 | 9149-9055 |
| 380/50 | 30 | 2950 | 5690-6978 | 8857-8148 |
9-19-7.1D
Without motor | 380/50 | 37 | 2950 | 4610-7376 | 11717-11596 |
| 380/50 | 55 | 2970 | 8144-9988 | 11340-10426 |
9-19-8D
Without motor | 380/50 | 75 | 2970 | 6594-11649 | 15034-114546 |
| 380/50 | 110 | 2980 | 12968-14287 | 14021-13362 |
| 380/50 | 7.5 | 1450 | 3297-4616 | 3620-3647 |
| 380/50 | 15 | 1450 | 5275-7144 | 3584-3231
|
